Fire safety is important in every home, workshop, and laboratory. In this beginner-friendly electronics project, you’ll learn how to make a simple fire alarm circuit using an IR photodiode, a BC547 transistor, a buzzer, and a few basic electronic components.
When a flame comes close to the IR photodiode, it detects the infrared radiation emitted by the fire. The BC547 transistor then switches ON, activating the buzzer to alert you.
This project is easy to build, requires no programming, and is an excellent way to understand how infrared sensors work.

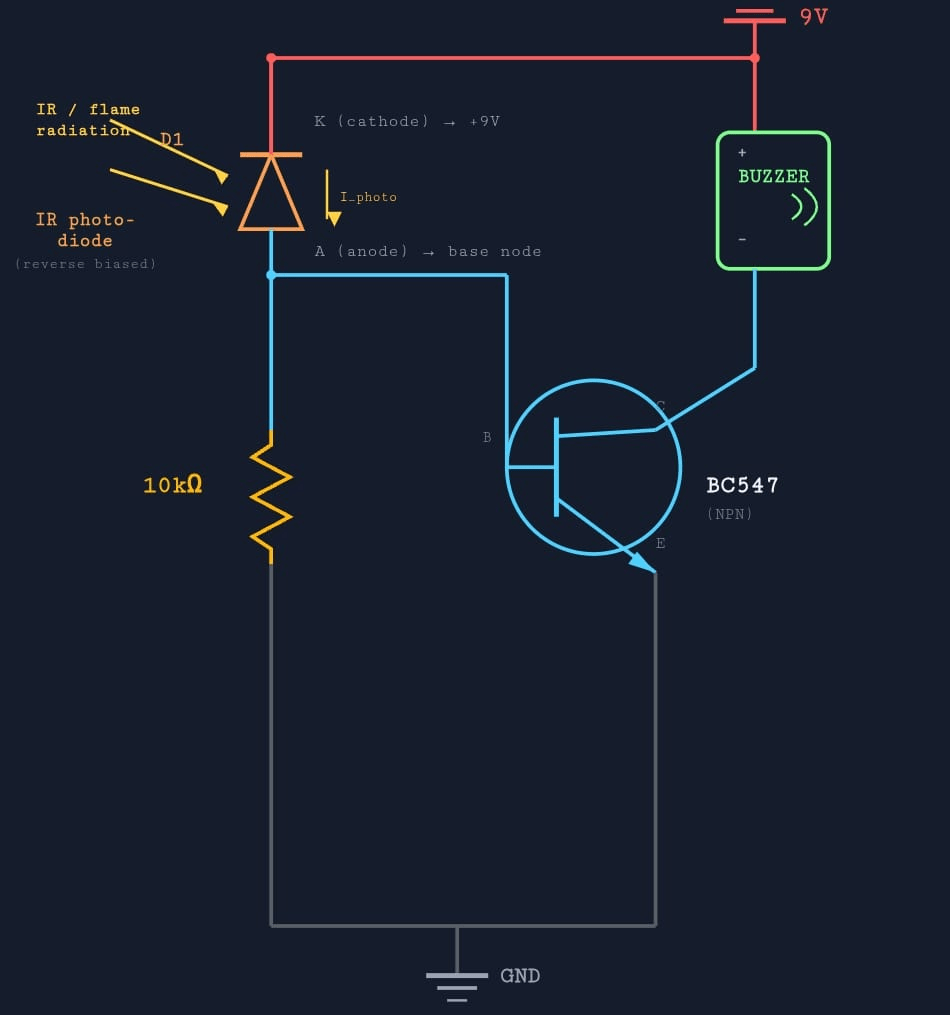

Circuit
Components Required
| Component | Quantity |
|---|---|
| IR Photodiode ➤ https://link.amazon/B0bZBTTr9c | 1 |
| BC547 NPN Transistor ➤ https://amzn.to/4ePUgEv | 1 |
| Buzzer ➤https://link.amazon/B0gKYe9oC | 1 |
| 10 kΩ Resistor ➤ https://amzn.to/4u3aCiH | 1 |
| 9V Battery ➤https://amzn.to/3SRXYWJ | 1 |
Circuit Connections
Follow these connections carefully:
- Connect the positive terminal of the 9V battery to one terminal of the active buzzer.
- Connect the other terminal of the buzzer to the collector of the BC547 transistor.
- Connect the emitter of the BC547 directly to the negative terminal of the battery.
- Connect the IR photodiode and 10 kΩ resistor so they provide the base signal to the transistor according to your circuit diagram.
- Double-check the polarity of the IR photodiode before powering the circuit.
Once everything is connected, bring a lighter or candle flame close to the IR photodiode. The buzzer should immediately turn ON.
Frequently Asked Questions (FAQs)
Can I power the circuit with 5V?
Yes, but the buzzer and circuit sensitivity may vary. Ensure all components are compatible with the chosen supply voltage.
Can I replace the BC547 transistor?
Yes. Similar NPN transistors such as BC548, BC337, or 2N2222 can often be used with comparable results.
Can this be used as a real fire alarm?
No. This is an educational project meant to demonstrate flame detection. For real fire protection, always use certified smoke or fire alarm systems that meet safety standards.
